Navigation: Using ASPRunnerPro > Page Designer

Inserting button

Scroll Prev Next More

Adding buttons

To add a button to a web page:



1.Proceed to the Page Designer and select a page you wish to modify.



2.Click Insert - Custom button on the main toolbar.

custom_button1



3. Choose New button.

custom_button2



Note: The already added custom buttons appear in the Insert -> Custom button window, so that you can re-use them. Any changes in the button code are made in the copies as well.

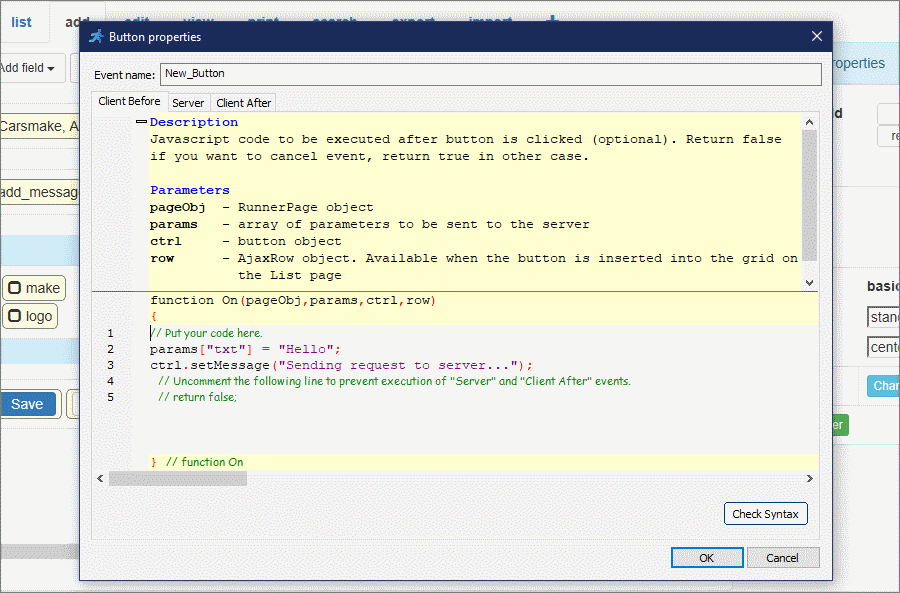

4. Type in the button caption and insert the code to be executed after the button is pressed.

insert_button_code



Note: Custom buttons utilize the Tri-part event system, that consists of three parts: Client Before, Server, Client After.

The Client Before part runs JavaScript code in the browser, then passes parameters to the Server part that runs ASP code, and then back to the browser to run the JavaScript code of the Client After part.

To learn more about these types of events, see Tri-part events.



5. Now the button is added to your web page. You can drag the button to change its location.

custom_button3



To edit the code, click Edit button code in Properties. You may also edit the code on the Events page. To delete the button, click Remove in Properties.

custom_button4



Button styles



Here is how different button styles look in generated application.



button_styles



To make a button look like an icon select "link" button style, select an icon and clear the button label. The result will look like a printer icon above.

Inserting containers

The container is a specific dropdown element in which you can insert other elements using drag-n-drop.



To insert a new container, do Insert -> Custom button -> New dropdown, then drag-n-drop it to any place you want.

insert_button_dropdown



You can see the number of elements within the container in the brackets next to it. Click this number to view the elements.

insert_button_dropdown2



The result looks like this:

insert_button_dropdown_result

Insert a button into datagrid

You can insert a button into a data table to make it apply to each data record on a web page.



Switch to Advanced Grid first. Then do Insert -> Custom Button -> New Button. Then drag-n-drop the button to the grid or anywhere where it needs to appear.

insert_button_grid



insert_button_view



Note: a button inserted into a datagrid works only if you select a key field for the table on the Choose pages screen.



You can use the rowData and button objects to program buttons inserted into a grid.

Hiding custom buttons

Select the button and click the '?' within the Item ID section on the right. It shows code examples of how to hide/show the button conditionally both on the server side and client side in JavaScript.

insert_button_hide_asp



Note: code examples in ASPRunnerPro already use correct Item ID, so you can copy and paste them to your code.



Use the following code to show or hide the items:



1) To hide the item insert this code into the Server event:



pageObject.hideItem_p1("itemId")



2) To show the item insert this code into the Server event:



pageObject.showItem_p1(itemId)



3) For elements in the data grid on the List and Print pages, use the recordId parameter in the After record processed event:



pageObject.hideItem "custom_button", recordId



In JavaScript events, use the toggleItem function to show or hide elements:



pageObj.toggleItem("loginform_login", true );
//or
pageObj.toggleItem("loginform_login", false );



Use the following code for elements in the grid:



pageObj.toggleItem("loginform_login", true, recordId );



The recordId can be obtained:



with row.id() in Click actions;

in the Custom button code when the button is inserted into the grid;

with pageObj.id in Field events;

with JS: Onload events from Inline Add and Edit.

Passing data between events

It's essential that a functional Tri-part event is able to pass data between its parts. For example, the Client Before part receives input from the user, passes it to the Server event. The latter runs some database queries using the data and passes the results to Client after, which shows the results to the user.



Two objects serve as links between the three parts of the event:



params object passes data from the Client Before to the Server event.

result object passes data from the Server to the Client After event.



Mind the syntax difference between the Client and the Server events. The Client code is JavaScript, and the Server code is ASP.



The key names, users, and variables are up to you. You can choose any names here.



You can also pass arrays and objects this way:



ClientBefore:



params["data"] = {
   firstname: 'Luke',
   lastname: 'Skywalker'
};



Server:



do_something( params("data")("firstname") )

Examples

Example 1. Inserting an "Add this product to shopping cart" button

For the Edit/View pages, the keys parameter in the Server event contains the information about the current record. You may use keys["KeyFieldName"] to access a specific key column.



For example, there is a Products table. To insert an Add this product to shopping cart button on the View page, add the following code to the Server event:



dim record, ShoppingCart
DoAssignment record, button.getCurrentRecord()
if not isnull(record("ProductID")) then
  'add new records to the ShoppingCart table
  'save current username in the UserID field
  set ShoppingCart = dal.Table("ShoppingCart")
  ShoppingCart.Product = record("ProductID")
  ShoppingCart.Quantity = 1
  ShoppingCart.UserID = Session("UserID")
  ShoppingCart.Add()
end if
result("txt") = "Product was added"



and this code to the Client After event:



var message = result["txt"] + ".";



For more information about using the Data Access Layer (DAL), see Data Access Layer.

Example 2. Send records selected on the List page via email

To send records selected on the List page via email, add the following code to the Server event:



email_msg= "List of records"
i=1
DoAssignment record, button.getNextSelectedRecord()
do while isObject(record)
  email_msg=email_msg & "Record: " & i & vbcrlf
  email_msg=email_msg & "Make: " & record("make") & vbcrlf
  email_msg=email_msg & "Qwerty: " & record("qwerty") & vbcrlf
  email_msg=email_msg & vbcrlf
  DoAssignment record, button.getNextSelectedRecord()
  i=i+1
loop
'send email
email = "test@test.com"
subject = "Sample subject"
sendmail email,subject,email_msg



For more information, see getNextSelectedRecord().

Example 3. Modifying the value of a field for all selected records on the List page

To modify the value of a field for all selected records on the List page, add the following code to the Server event:



dim record, strUpdate
DoAssignment record, button.getNextSelectedRecord()

do while isObject(record)
 strUpdate = "update Invoices set Status='Paid' where InvoiceID=" & record("InvoiceID")
 CustomQuery(strUpdate)
 DoAssignment record, button.getNextSelectedRecord()
loop

Example 4. Inserting a button redirecting to another page

To make a button redirect to another page, add the following code to the Client Before event or Client After event:



location.href="https://cnn.com";

Example 5. Showing a message to the customer for a limited time

Let's say you have a button that retrieves a piece of sensitive info from the server that needs to be shown to the customer for a short time. After that, the message needs to be hidden. To do this, add the following code to the Client After event:



// this message includes the SSN retrieved from the server
var message = result["txt"];
ctrl.setMessage(message);

// clear the message after 5 seconds
setTimeout(function(ctrl)
{
 ctrl.setMessage("");
}
, 5000);

Example 6

Let's say you want to add a button to the View page that redirects to one of the application pages, depending on the value of the Category field. To do so, you may add this code to the Server event:



'get the value of the current record and pass it to the ClientAfter event
DoAssignment result("record"), button.getCurrentRecord()



and this code to the Client After event:



if (result.record["Category"]=='Schools')
 location.href="Schools_list.php";
else if (result.record["Category"]=='Organisations')
 location.href="Organisations_list.php";
else if (result.record["Category"]=='Careers')
 location.href="Careers_list.php";



For more information, see getCurrentRecord().

Example 7

To refresh the page, add the following code to the Client After event:



location.reload();
