Connecting to the database

Scroll Prev Next More



ASPRunnerPro supports the following databases: MySQL, Oracle, Microsoft SQL Server, MS Access, PostgreSQL, Spreadsheet File, Informix, DB2, SQLite, SQL Server Compact, and any ODBC-enabled databases.

intro_choose_the_db_type

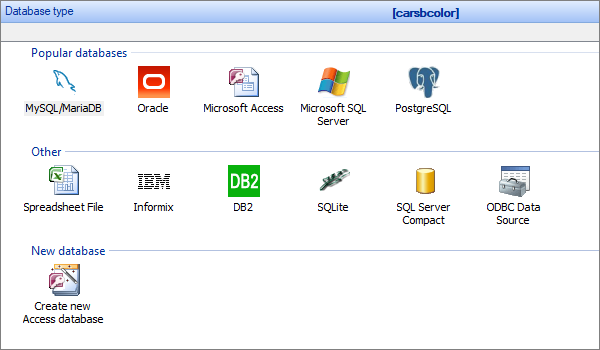

Select the database type and press Next>>. Depending on the selected database type, one of the database-specific dialog boxes shown below appears on the screen.



Note: use Recent connections to connect to the previously opened databases quickly.



After successfully connecting to the database, you can select the datasource tables.

Connecting to MySQL/MariaDB

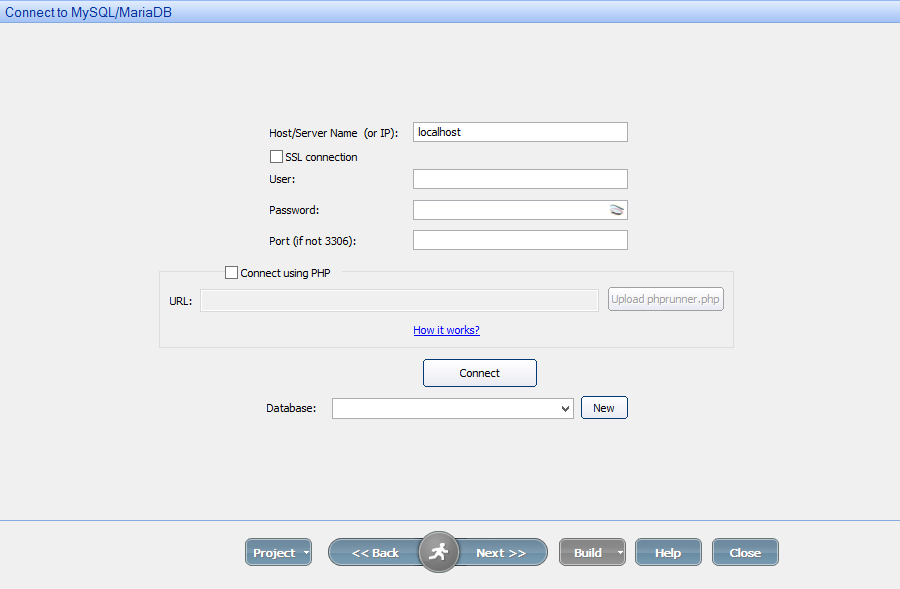

Type in the Host/Server Name (usually - localhost), username, password, and click Connect. See Internet Information Services (IIS) to learn more about installing a local web server.

intro_connect_to_the_database



Select the database and click Next >>.

Connecting to PostgreSQL

Type in the Host/Server Name (usually - localhost), user name, password, set the additional parameters if required (use space as the delimiter, e.g., key1=value1 key2=value2), and click Connect.

connectdb_postgres



Select the Database and click Next >>.

Connecting to Oracle, Microsoft SQL Server, Informix, DB2

Type in the Host/Server name, Database Name, username, password, and click Connect.

Connecting to MS Access, spreadsheet file, SQLite

Choose the Spreadsheet File option to select an Excel, FoxPro, DBase, Paradox, or text database file.

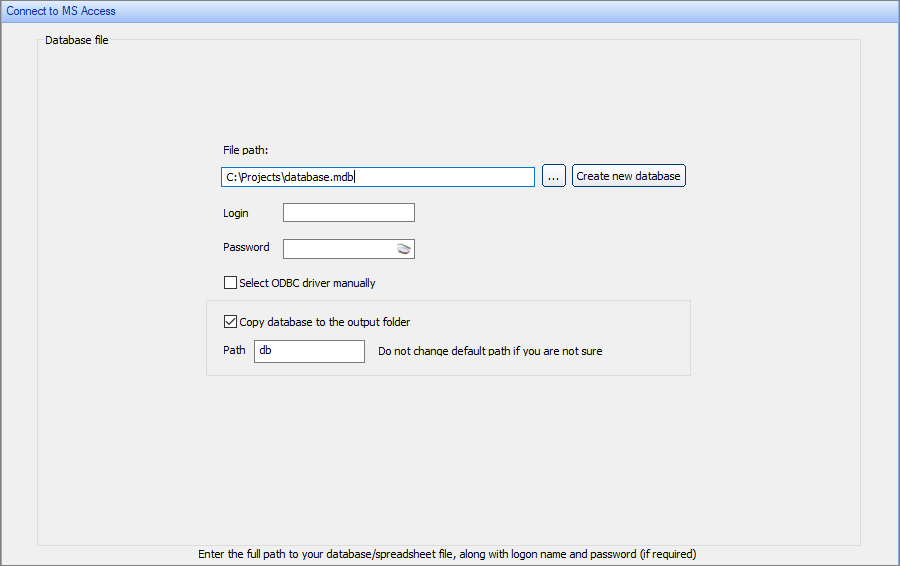

Define the file path to your database/spreadsheet file, enter the login and password if required. Click Next >>.

connectdb_msaccess



ASPRunnerPro tries to find which ODBC driver to use to connect to the selected database file. Select the Select ODBC driver manually checkbox if you'd like to select the ODBC driver manually.


To learn more about connecting to MS Access, see Connecting to MS Access database.

Connecting to ODBC Data Source

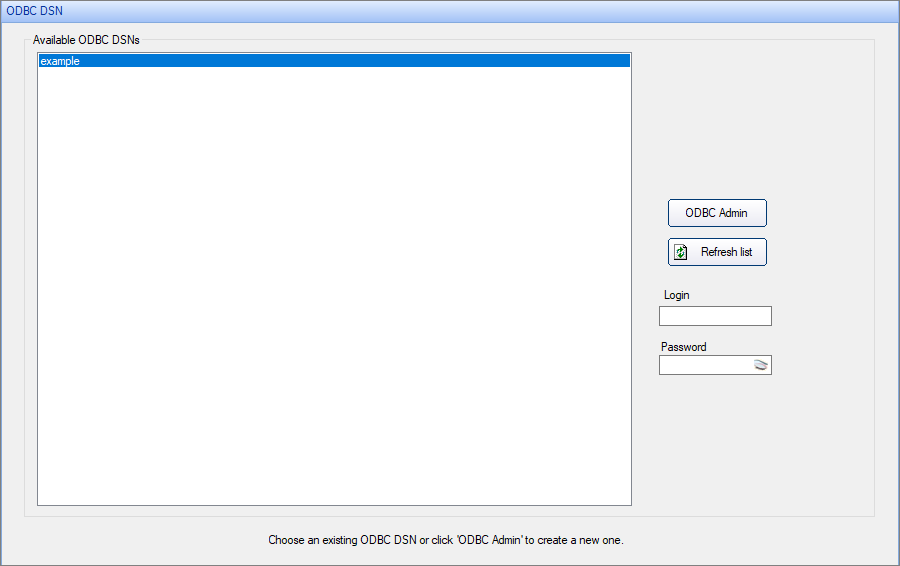

If you already have an ODBC Data Source Name (DSN) associated with your database, select ODBC DSN from the list box. Enter the Login and Password if required. Press Next>> to continue.



To create a new DSN, press the ODBC Admin button. Add a new DSN in the popup, then click Refresh list.

connectdb_odbc_dsn

Connecting through ODBC driver dialog

Choose this option to connect directly through the ODBC driver dialog.

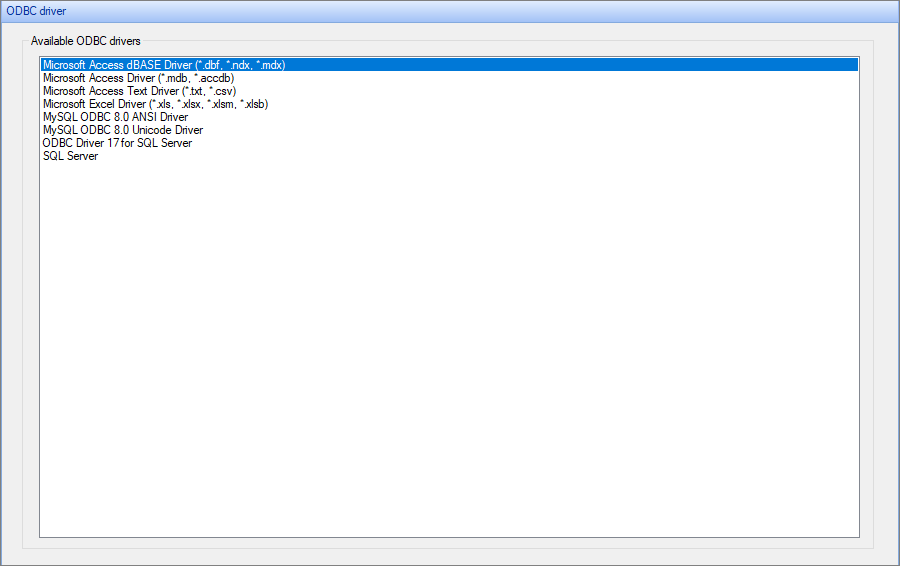

Select ODBC Driver from the list box, pick the necessary driver from the list of available drivers, and click Next>>.

connectdb_odbc_driver

Create a new MS Access database

If you do not have a database yet, choose this option and click Next>>. ASPRunnerPro creates a new empty MS Access database with this option.



Use the Create new table window to create new tables in your database.

connectdb_create_msaccess_db



Type in the name, type, size, scale (applies to the DECIMAL field type in SQL Server, Oracle and MySQL only) for each field. Set the Primary key field.



Databases created with ASPRunnerPro are saved to the project directory.



Note: don't change the database settings after you've built your project and added records into the database. All data will be lost after the database settings modification.

Downloading drivers

If you use a 32-bit version of ASPRunnerPro, you need to download the 32-bit drivers. If you use a 64-bit version of ASPRunnerPro, download the 64-bit drivers.



32-bit drivers:

Oracle - Download link (requires an Oracle account).

Informix - Download link (requires an IBM account).

DB2 - Download link.



64-bit drivers:

Oracle - Download link (requires an Oracle account).

Informix - Download link (requires an IBM account).

DB2:

 - version 9.7 - Download link;

 - version 10.1 - Download link;

 - version 10.5 - Download link.
