Azure Blob Storage

Upload to Azure Blob Storage



This article show how to configure PHPRunner to upload files to Azure Blob Storage service.

1. Create a Storage Account



In Azure Portal:



1.Create a resource → Storage account



2.Fill in:

▪Subscription / Resource Group

▪Storage account name (must be globally unique)

▪Region

▪Performance: Standard

▪Redundancy: usually LRS



3.Click Create

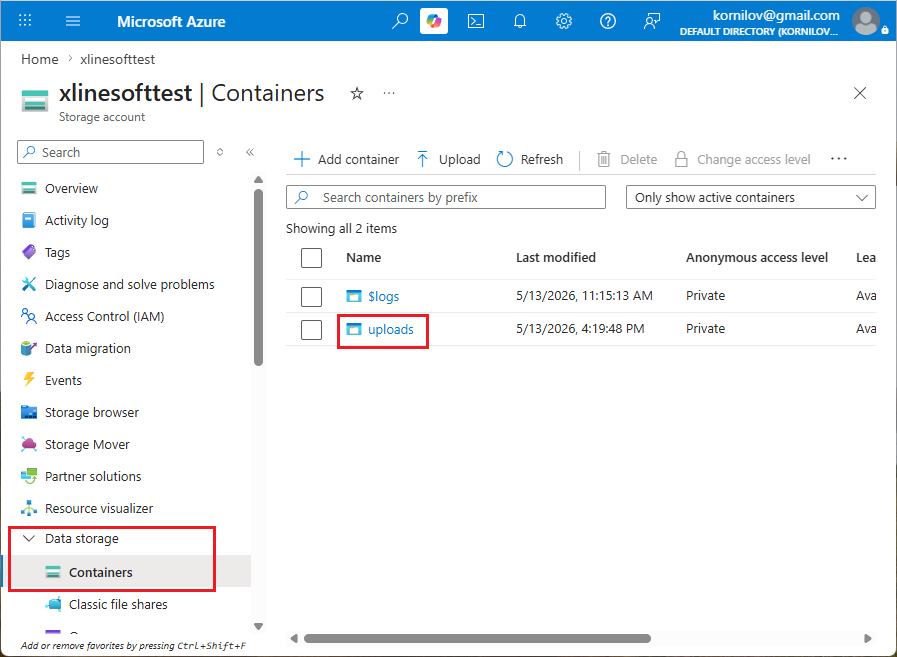

2. Create a Blob Container



Inside the Storage Account:

1.Data storage → Containers

2.+ Container

3.Enter:

•Container name (e.g. uploads)

•Access level: usually Private



3. Obtain Required Values



Storage Account Name

Storage Account → Overview

Example:

myblobstorage



Container Name

Storage Account → Containers

Example:

uploads

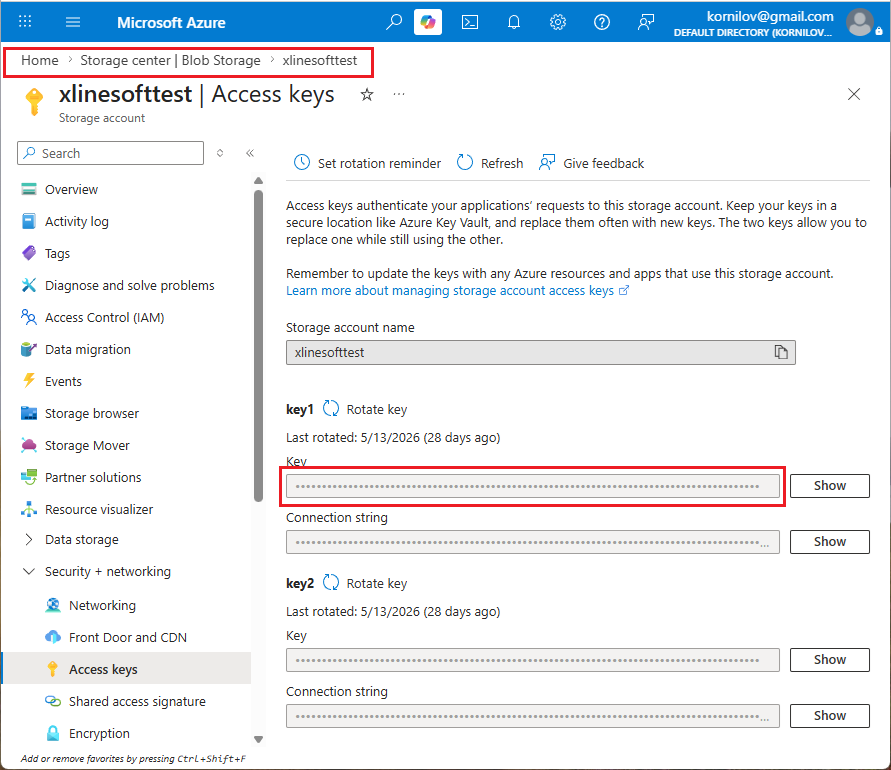

Access Key

Storage Account → Security + networking → Access keys

Copy either:

key1

or

key2

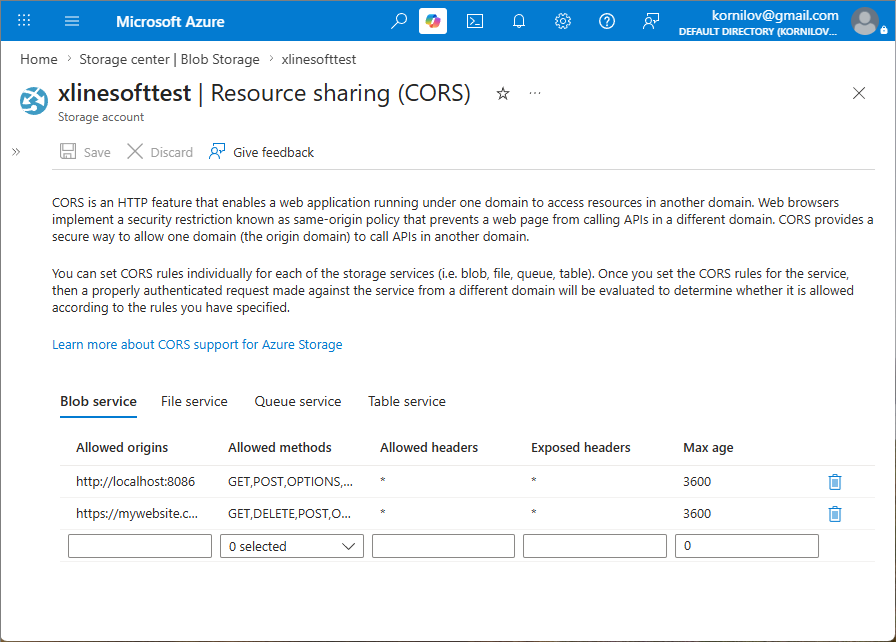

4. Configure CORS



Required if files are uploaded/read directly from browser JavaScript.

Storage Account → Settings → Resource sharing (CORS) → Blob service



Add rule:

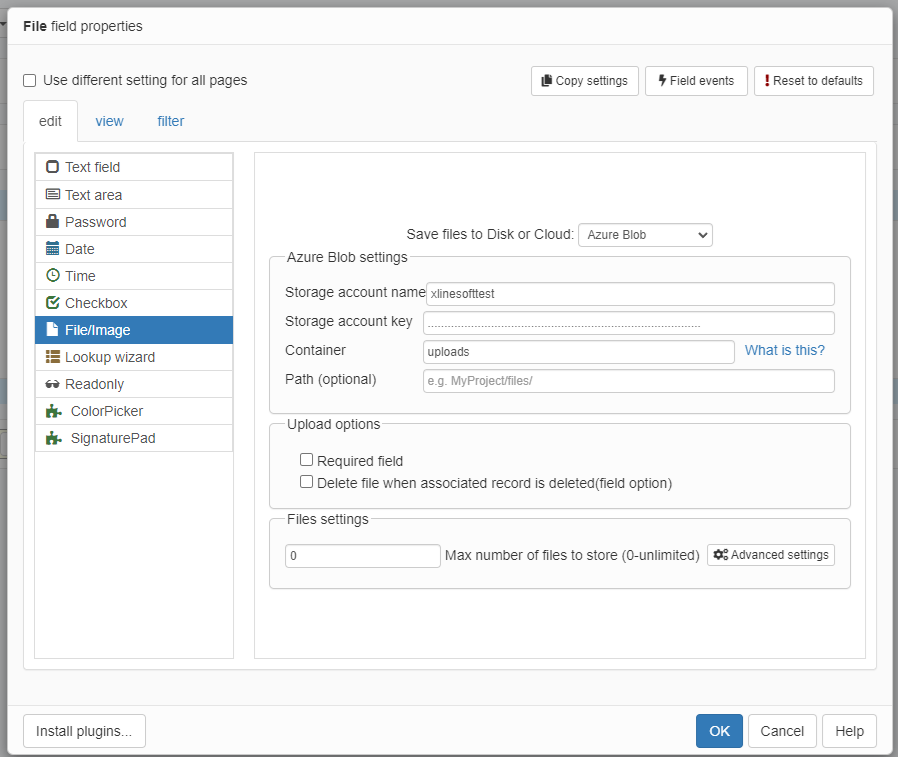

5. Setting it up in PHPRunner



Now select a text field in the Page Designer, proceed to 'Edit as' settings, set 'Edit as' type to File/Image and select Azure Blob under 'Save files to Disk or Cloud' dropdown box.
